Overview

Basic Info.

Model NO.	BHD6620
Base Type	No
Irradiated Area	≥30m²
Input Voltage	90-305VAC
Power	80W/100W/120W/150W/160W/180W/200W
Color Temperature	Cool White
Emitting Color	White
LED Chips Brand	Osram
Certification	CCC, CE, EMC, LVD, RoHS, SAA, Atex Iecex Pcec
Warranty	5 Years
Zone	Hazardous Area Zone 1 Zone 2 Zone 21 Zone 22
Light Efficient	More Than 130lm/W
Applications	Oil and Gas, Chemical, Petrochemical
Mounting	Ceiling, Wall Mounted
Certificate Institue	TUV
Transport Package	1 PCS/CTN
Specification	395*275*200mm
Trademark	HUADING
Origin	China
HS Code	9405409000
Production Capacity	5000PCS /Month

Packaging & Delivery

Package Size40.00cm * 30.00cm * 20.00cm Package Gross Weight11.000kg

Product Description

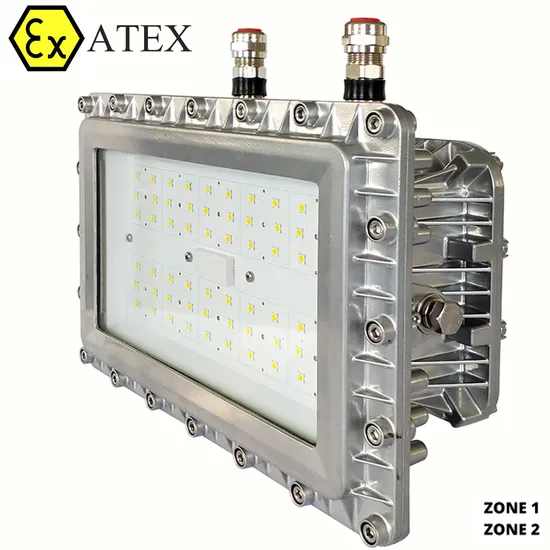

LED explosion proof highbay light 80W/100W/120W/150W/160W/180W/200W

• Body: Low copper content aluminium alloy fitted with cooling fins for better heat dissipation
• Glass face: Shock and temperature resistant tempered glass sealed with aluminium ring
• Lamp efficient: >130lm/w
• Wide voltage: 90-305VAC
• Surge Protection:6KV
• Power factor: > 0.95
• THD (Total Harmonic Distortion): <20%
• Inrush current: <65

Company Introduction:

Shandong Huading Weiye Energy Technology Corp., Ltd.(Huading LED) was founded in 2007 and listed in 2015, specialized in R&D, production and marketing LED explosion proof flood light, flame proof high bay lamps, anti-explosive projector lights, explosion proof linear tube lighting fixture, flame proof industrial lamps. successfully become supplier of SHENHUA Group, CNPC and WANHUA etc. Now products of Huading LED have been sold overseas, Europe, South America, South Asia, Middle East all have our distributors.Company provide professional safety lighting and intelligent control solution for coal mine ,mining, petroleum, chemistry industry, nuclear power,port,tunnel,oil and gas ,medical industry etc.

We have got ISO9001,14001, Ce, Rohs, ATEX, IECEx certificate

FAQ:

Q1: What is your MOQ?
A1: MOQ is 1 pc

Q2: Are you trade company or factory?
A2: We are factory, with a LED lighting engineering R&D center, provide service from design to production.

Q3: What are your main products?
A3: Business includes explosion proof industry lighting, nuclear power lighting, municipal lighting ,tunnel lighting, education lighting, intelligent lighting control system. Company provide professional lighting and intelligent control solution for coal mine, petroleum, chemical industry, nuclear power, port, tunnel, communication, eduction, medical industry, etc

Q4: How can I get a quotation
A4: We can offer product list for you, but if want a exact price, please let me know the quantity, the power, and the Luminous Flux.

Q5: Do you have certificate?
A5: CE,ROHs,ATEX,IECEx,PCEC certificate are available

Q6: Can you do OEM or ODM
A6: Yes
Product Parameters

APPLICATIONS	BHD6620 is a hazardous location LED explosion proof lighting fixture Class I Division 2, Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.
CERTIFICATIONS	ATEX,IECEx certificate issued by TUV, CE, ROHs
HOUSING BODY	Aluminum alloy ADC12, WF2 grade
LENS	4mm thick tempered glass & PC reflector 30º 60º 90º 120º +95% light transmission. Shock and vibrations resistant.
PERFORMANCE	12,000 to 24,050+ lumens Up to 140 lm/w. From 80W up to 200W. L70 (hrs) rated > 65,000.
IP66 & IP67 RATED	Dust tight and protected against the effects of immersion in water to depth between 15 cm and 1 meter. 1-10V, DALI dimming standard. Ideal for heavy industry, mining, refineries, chemical industry, coastal marine facilities and corrosive applications.
MOUNTING	Surface/wall mount standard (adjustable mount bracket included). Pendant kit optional.
OPERATING TEMPERATURE	-40°C to 50°C
DIMMING	1-10V dimming standard , DALI, Triac
